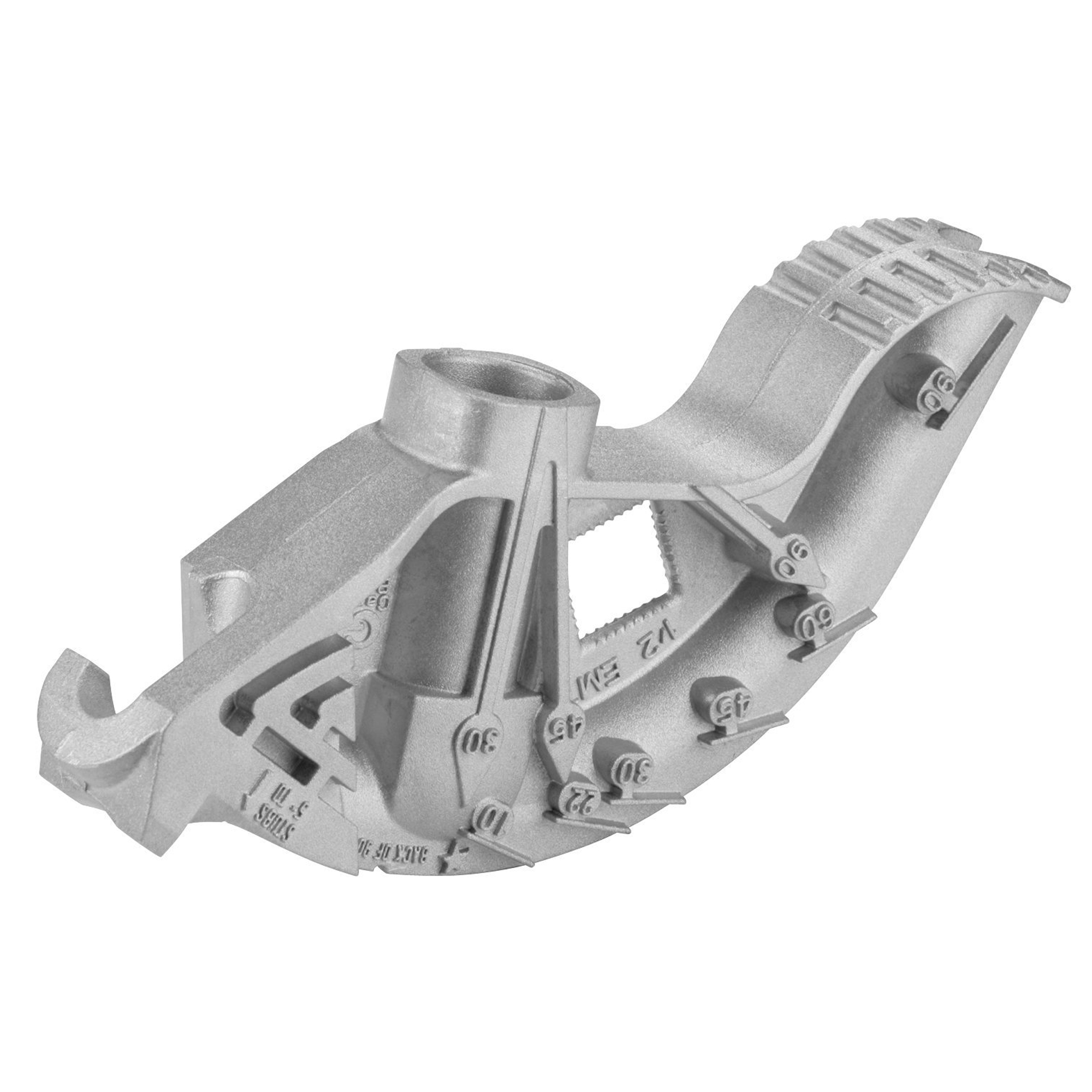

BigBen Hand Bender Head, 1" EMT 3/4" Rigid IMC, Aluminum

Part # 962

Gardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the More...

WHERE TO BUY
Out of Package Weight (oz) 3.16
Each in Package Height (in) * 9.5
Each in Package Width (in) * 3.7
Each in Package Length/Depth (in) * 13.1
Each in Package Weight (lbs) * 3.98
Inner Pack Weight (lbs) * 7.96
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Silver

Gardner Bender's Big Ben aluminum hand bender has improved traditional hand benders by enlarging the hook with a 5x durability factor, increasing the foot pedal size and clearance by 40 percent , highlighting the markings and incorporating a dual sight-line system for bending on the floor or in the air. Includes industry standard markings to simplify the job. Made of rugged, heat-treated aluminum, and backed by a lifetime warranty. Package includes bender head only. Also available with handle (Model #962H). Other head sizes available are: 1/2" (Model #960) and ¾" (Model #961). Bender handle available separately (Model #BH-100 - 1" NPT x 44" long). Includes a detailed hand bending manual which clearly illustrates various bends and how to achieve them including the mathematical formulas to complete more complicated bends.

  • Embossed sight lines for 10 deg, 22 deg, 30 deg, 45 deg, 60 deg and 90 deg
  • Industry-standard markings - 30 deg bend when handle is straight up

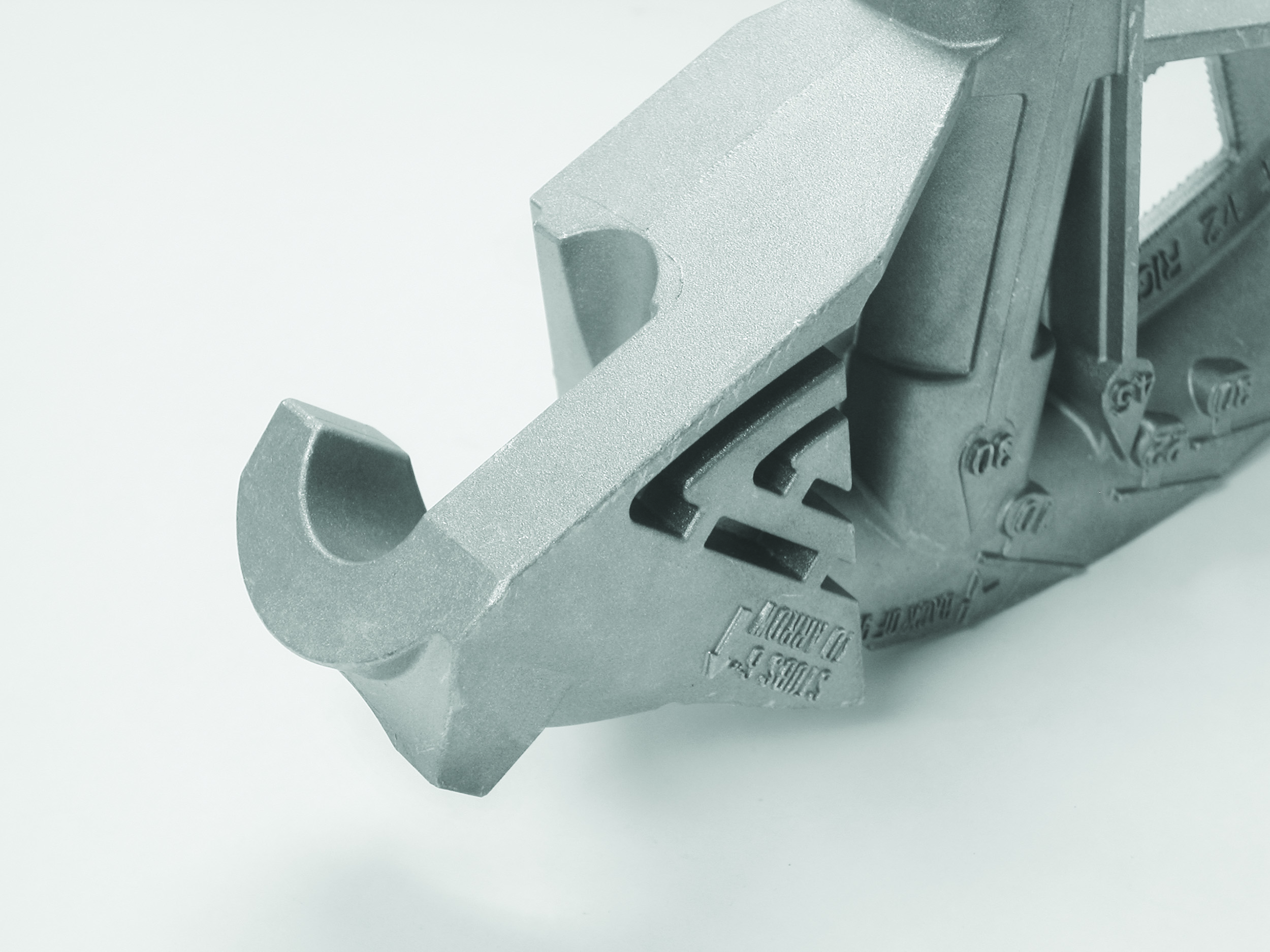

  • Bigger hook with a 5x durability factor
  • Bigger foot pedal - 40% larger. More foot room allows for use with a booted foot
  • Bend-back channel easily corrects conduit over-bends
  • Vise-Mate holds conduit while cutting or reaming
  • Head only - fits handle number BH-100

Warranty Limited Lifetime
Model Benfield®
